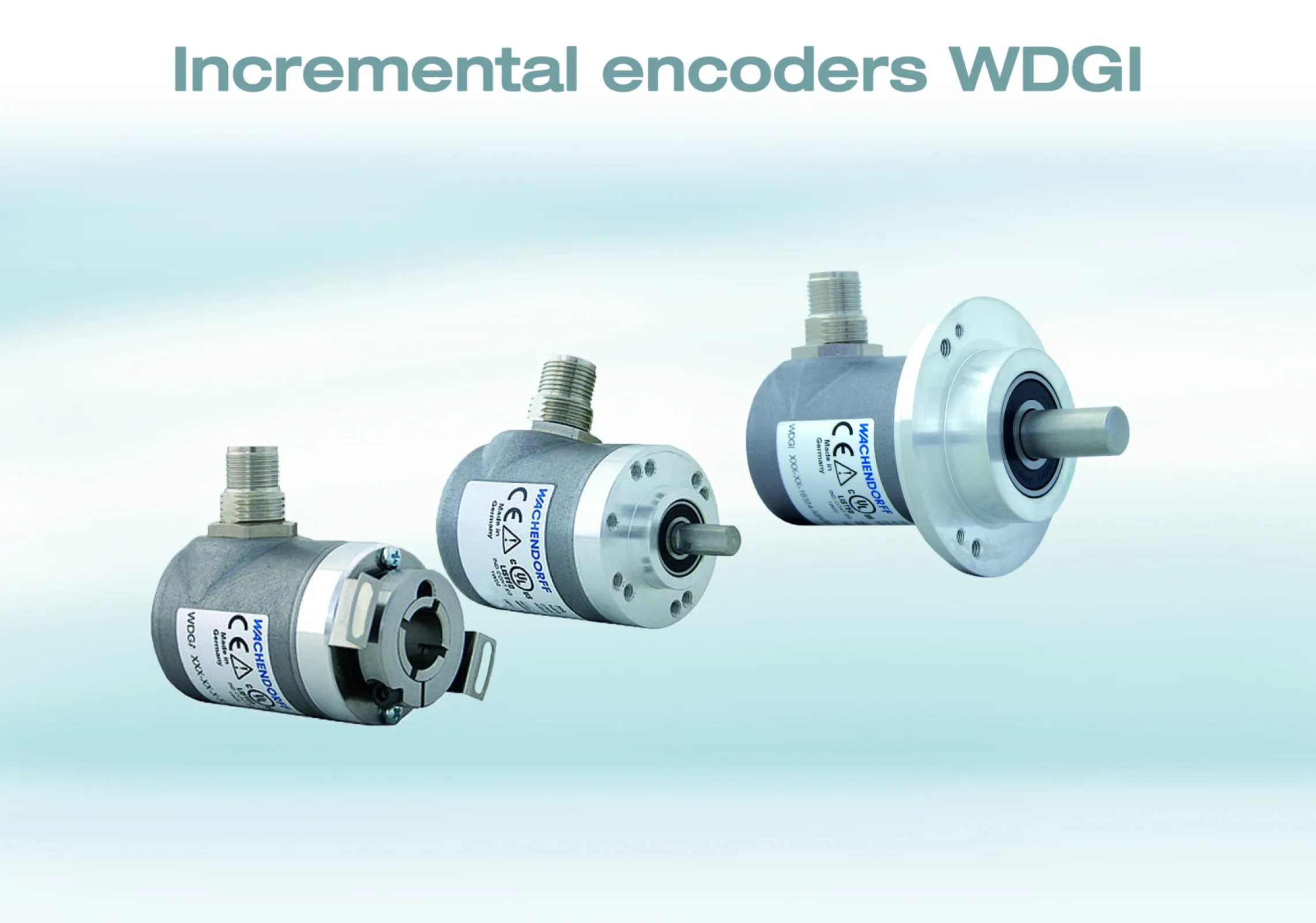

Available outer diameter: 36 mm to 58 mm; pulses configurable from 1 to 16,384 ppr.
Output signal supports HTL / TTL (at 5 V supply).
Overall protection class: IP67; shaft protection optional: IP65, IP67 or IP69K.
Max output frequency up to 1 MHz.
Operating voltage: 5~30 VDC, with reverse polarity and short-circuit protection.
Mechanical mounting is fully compatible with mainstream Japanese encoders.
