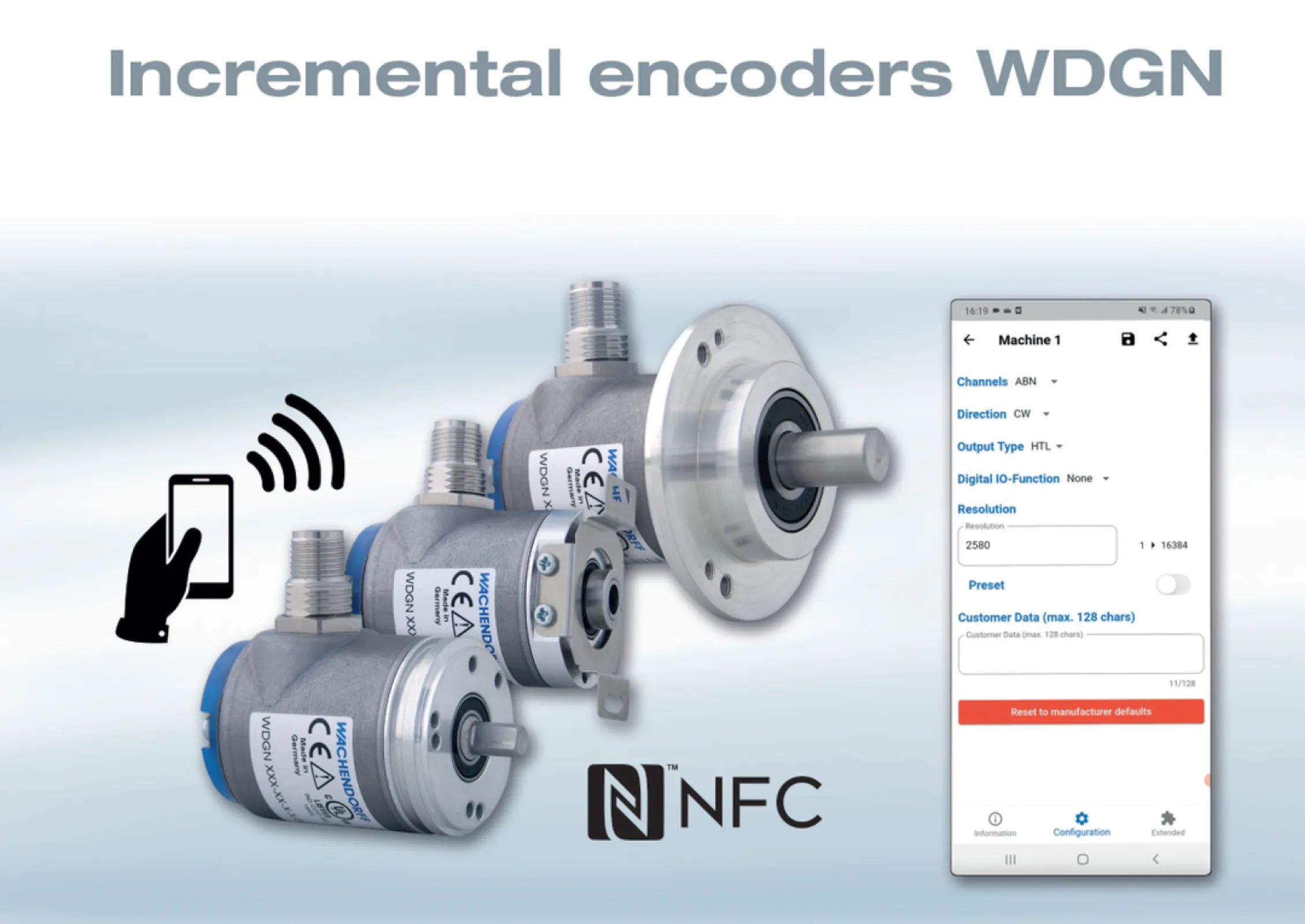

Wachendorff launches the world’s first incremental encoder WDGN series supporting NFC connection, which enables parameter configuration via mobile APP.

• Available in outer diameters from 36 mm to 58 mm; pulses can be configured from 1 to 16,384 ppr via NFC.

• Thanks to high-quality electronic components, any pulse rate up to 16,384 ppr can be configured through NFC.

• HTL/TTL output is configurable via NFC.

• The overall protection grade reaches IP67; shaft protection is available in IP65, IP67 or IP69K options.

• High output frequency up to 1 MHz.

• Operating voltage: 4.75~32 VDC, with reverse polarity and short-circuit protection.

The new WDGN incremental encoder series allows configuration of any pulse resolution from 1 to 16,384 ppr via NFC. It is offered in Basic and Advanced versions, with the Advanced model supporting extended parameter settings. Simply download the dedicated APP on your smartphone. You can set and configure all required parameters without physical contact or power supply to the encoder — configuration can even be completed through the original packaging.
