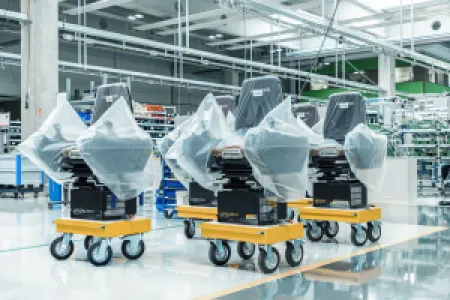

• Modular series made of metal

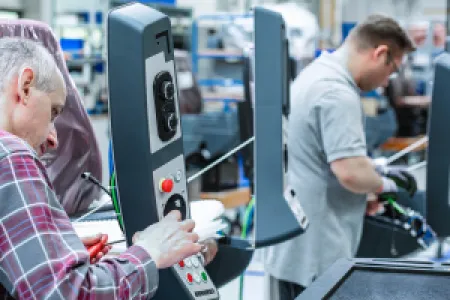

• Innovative side consoles in various designs and sizes

• Hinged console covers or removable insert plates

• Optionally with customer-specifi c layout

• Powder coating in standard or customized color

• Upper part of the seat can be moved individually or

together with the side consoles

• Different console support systems for a variety of

ergonomic adjustment options for fatigue-free and

comfortable working

• Combinable with seats from various manufacturers

• Fixed or rotatable with eccentric brake or detent,

motorized on request

• Different rotating footrests can be attached

• Adjustable armrests on the side consoles or on the

seat

• Brackets for monitors, PCs, touch panels optional

• Available complete with installation and wiring as

plug-and-play solution

• Developed in consideration of ergonomic

requirements in accordance with DIN 33402

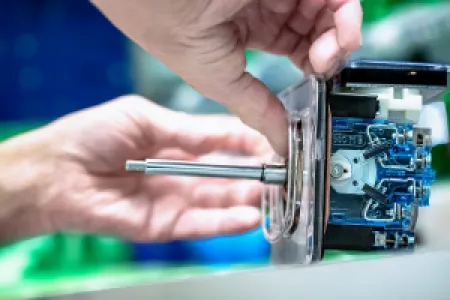

• Metal drive mechanism and drive

block

• Long mechanical service life of up

to 20 million switching cycles

• Non-contact HALL sensors and/or

lightweight plastic potentiometers

• Microswitches for hardware wiring

• Optionally integrated interfaces

for CANopen, CANopenSafety,

Profibus, ProfiNet, ProfiNet with

ProfiSafe protocol

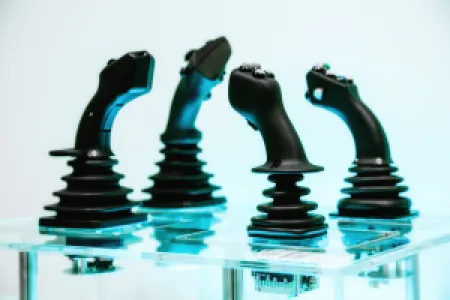

• Combinable with several SPOBU

handles

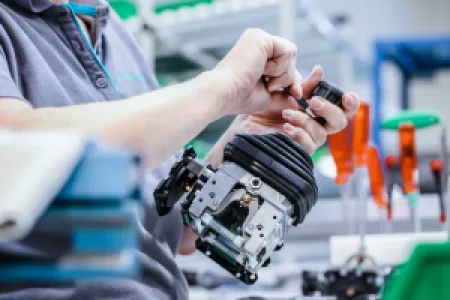

The VNS0 and the NNS0 are extremely robust metal joysticks with aluminum die-cast console and metal gear. Resistant to ozone, UV radiation, oil, and maritime climates, they are particularly suited for hard use, even in Ex areas. They are available with single drive or compound drive. With customized, adaptable contact elements, the intelligent modular system enables installation of up to 12 units, each with two switch contacts. These can either be flanged on in the X-direction, Y-direction, and Z-direction or connected in series. With spring return and notches, nine contact elements are the maximum. Notches and cam disks can be selected from an extensive standard range, or they can be programmed as requested by the customer. Silver or gold contacts are optional.

Our classic joystick.

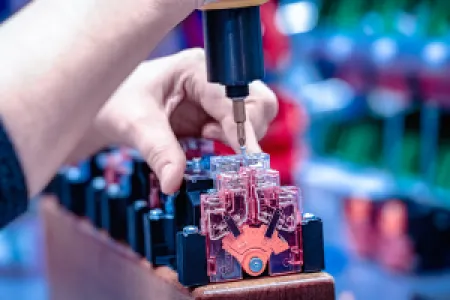

For medium-duty applications, we recommend this joystick which has been proven in use for decades. The drive block with special leak-current-proof, heat-resistant and cold-resistant insulation supports all mechanical components and serves as contact protection for the electrically conductive parts. An optional zero position, horn, or deadman's contact can be integrated in the drive block for space-saving and protected installation. Finger-safe double contact elements for up to 250 V and 10 A are fitted intelligently with positive locking and additionally they are securely flanged onto the drive block. Various connecting links are available for mechanical limiting or guidance of the direction of movement.
